TC Desktop Single Frequency Ultrasonic Generator

TC digital ultrasonic cleaning generator
TC digital ultrasonic cleaning generator

Product Overview

The TC series generator is an ultrasonic generator that has been developed by Zhenlang Company for more than ten years and is positioned in the field of high-end industrial cleaning. This generator is developed with the latest technology and is the first product with a full-bridge phase shift, constant power output, automatic frequency chasing, and automatic impedance change. It can further improve the adaptability of the generator for different working conditions. stability.

The generator frequency: 20~130Khz, the maximum power can reach: 2000W can be connected to the cleaning sink separately or matched to the large-scale cleaning system, which can provide fast, uniform and high-quality cleaning effect in either way.

Performance Features

  • Adopt IGBT full-bridge phase-shifting technology to support 10~100% stepless power adjustment;
  • Automatic constant power output according to load changes;
  • Automatic frequency chasing and impedance change technology to ensure that the generator works at the optimal frequency point;
  • Using 2 times peak power technology, it has a better cleaning effect on stubborn stains and semi-aqueous solvents;
  • The frequency scanning function can effectively eliminate standing waves and improve the ultrasonic distribution of the cleaning tank;
  • Conversion efficiency is over 95%;
  • LCD LCD local display, support parameter setting and status monitoring;
  • Internal overcurrent, overvoltage, short circuit protection;
  • Support remote control can be connected to PLC, HMI, and other industrial control equipment;
  • Support RS485 MODBUS RTU communication;
  • Support for 19-inch cabinet installation.

Model Specifications

ModelFrequencyNominal powervibratorPower supply voltageExternal interface
TC-062828KHZ600WB110/220VACIO/485
TC-102828KHZ1000WB110/220VACIO/485
TC-122828KHZ1200WB220VACIO/485
TC-152828KHZ1500WB220VACIO/485
TC-182828KHZ1800WB220VACIO/485
TC-202828KHZ2000WB220VACIO/485
TC-064040KHZ600WG110/220VACIO/485
TC-104040KHZ1000WG110/220VACIO/485
TC-124040KHZ1200WG220VACIO/485
TC-154040KHZ1500WG220VACIO/485
TC-184040KHZ1800WG220VACIO/485
TC-204040KHZ2000WG220VACIO/485
TC-066868KHZ600WH220VACIO/485
TC-106868KHZ1000WH220VACIO/485
TC-126868KHZ1200WH220VACIO/485
TC-156868KHZ1500WH220VACIO/485
TC-068080KHZ600WP110/220VACIO/485
TC-108080KHZ1000WP220VACIO/485
TC-128080KHZ1200WP220VACIO/485
TC-158080KHZ1500WP220VACIO/485
TC-06130130KHZ600WP110/220VACIO/485
TC-10130130KHZ1000WP220VACIO/485
TC-12130130KHZ1200WP220VACIO/485

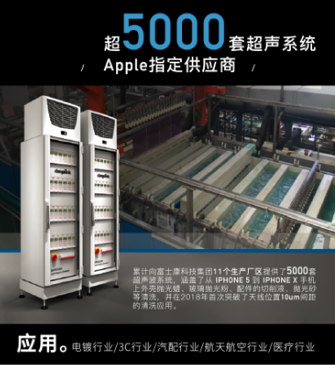

Application Case

 Cleaning the workpiece: Apple iphone5-iPhone X mobile phone parts, MAC notebook computer parts (Shanglang company is the designated supplier of ultrasonic cleaning of Foxconn Apple products);
Provide products: Cabinet type ultrasonic generator + ultrasonic vibration box application: mobile phone glass cleaning line, anodizing line, stainless steel parts cleaning line, etc.;

Picture 1.png
